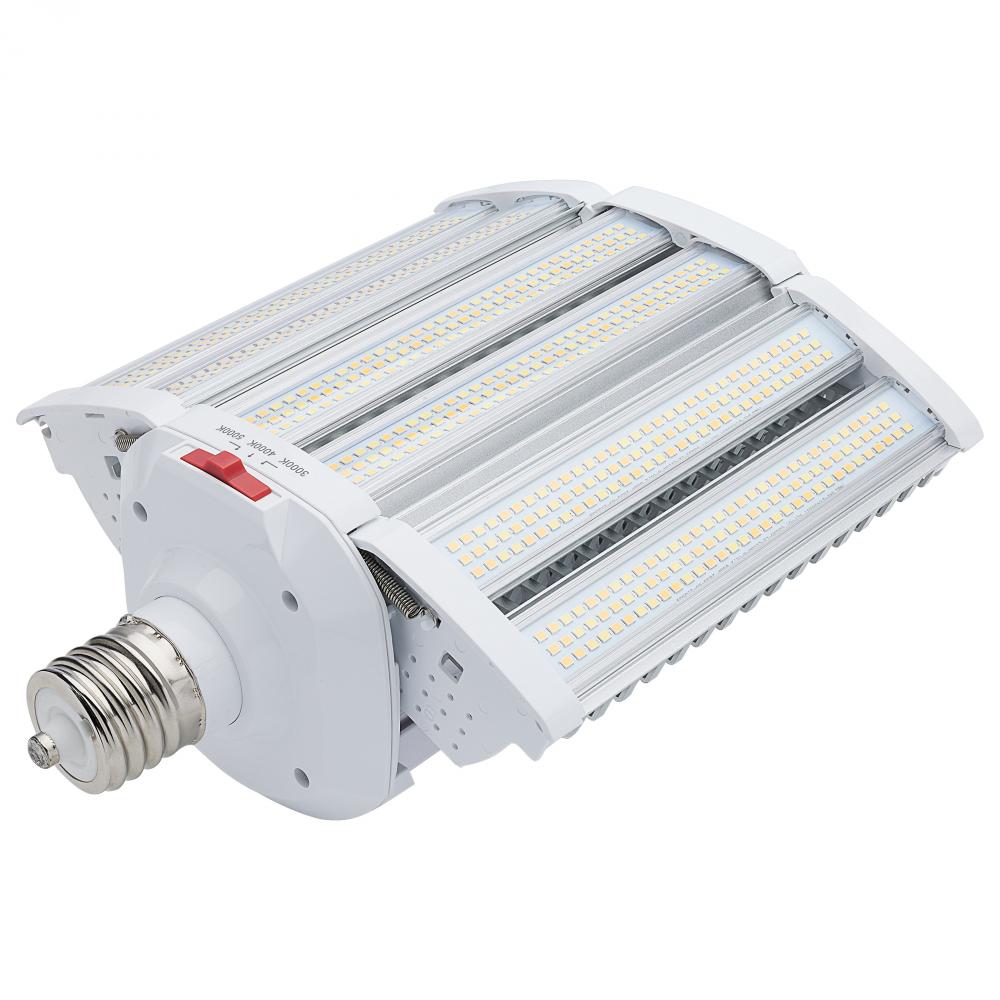

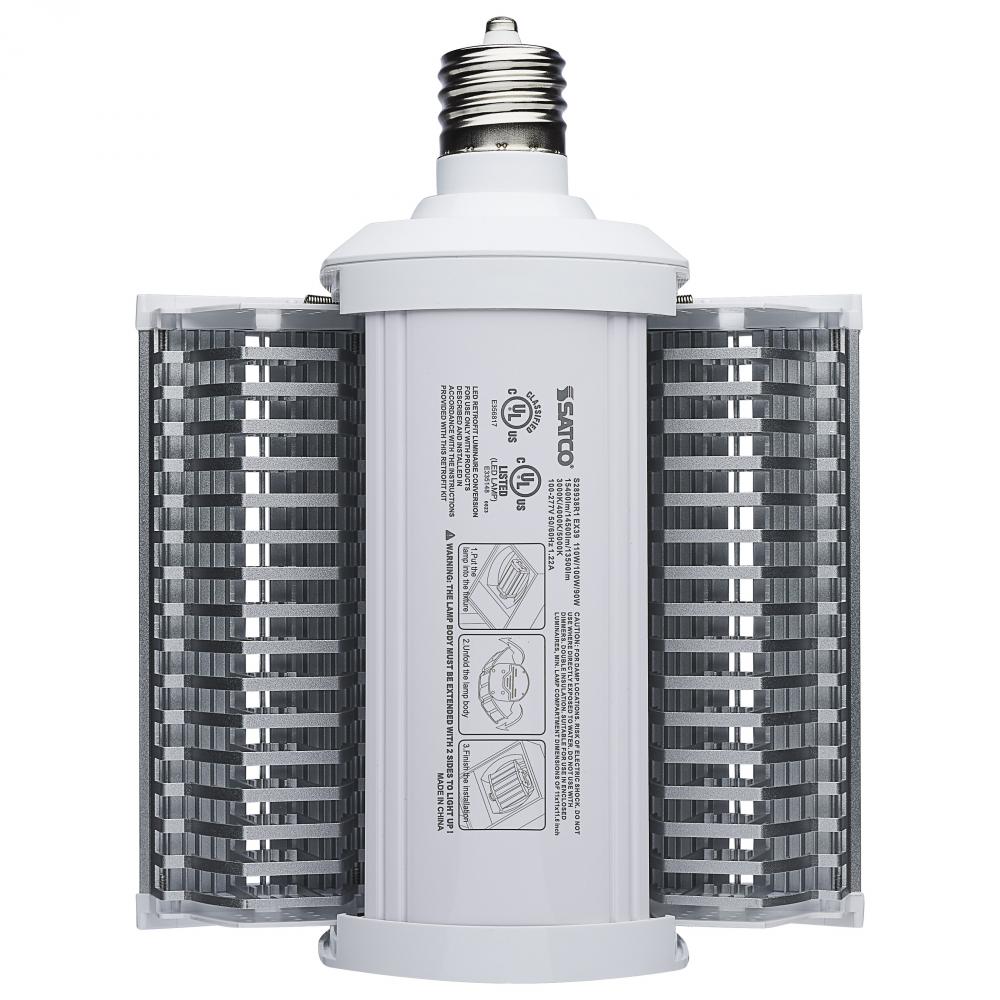

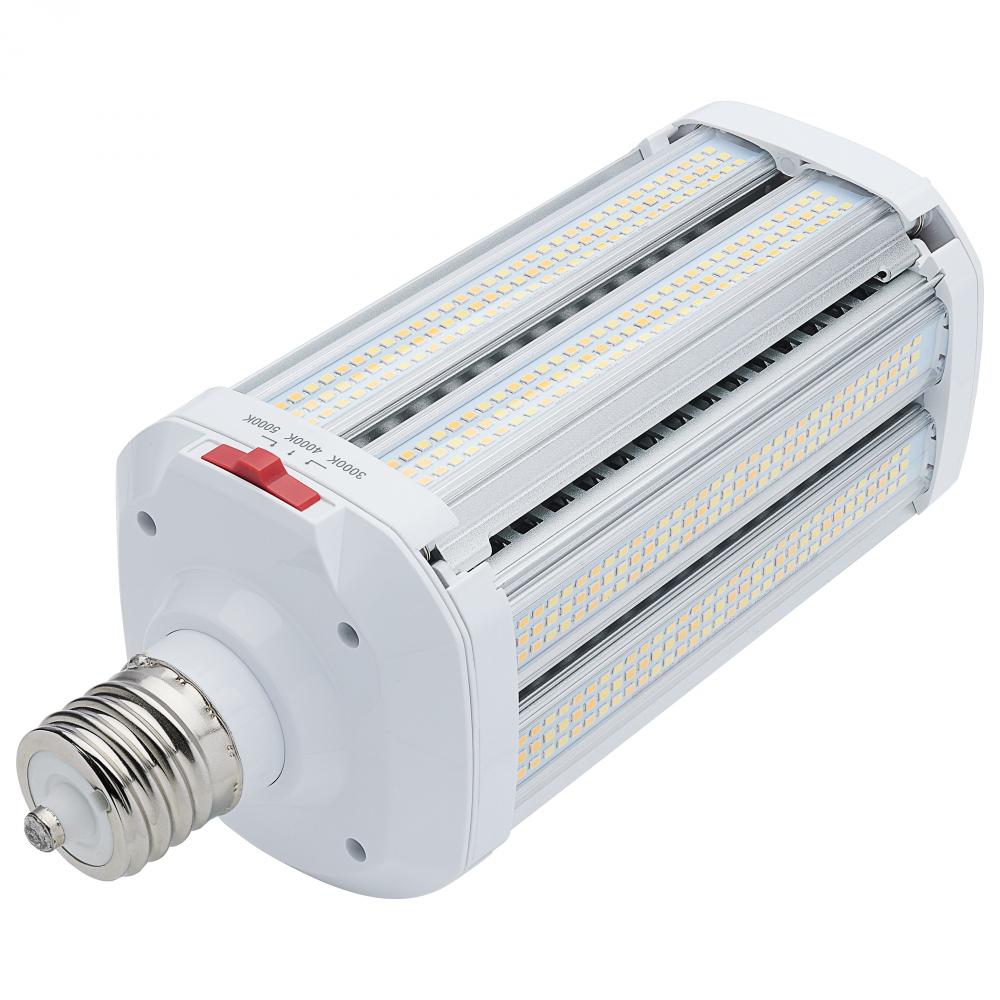

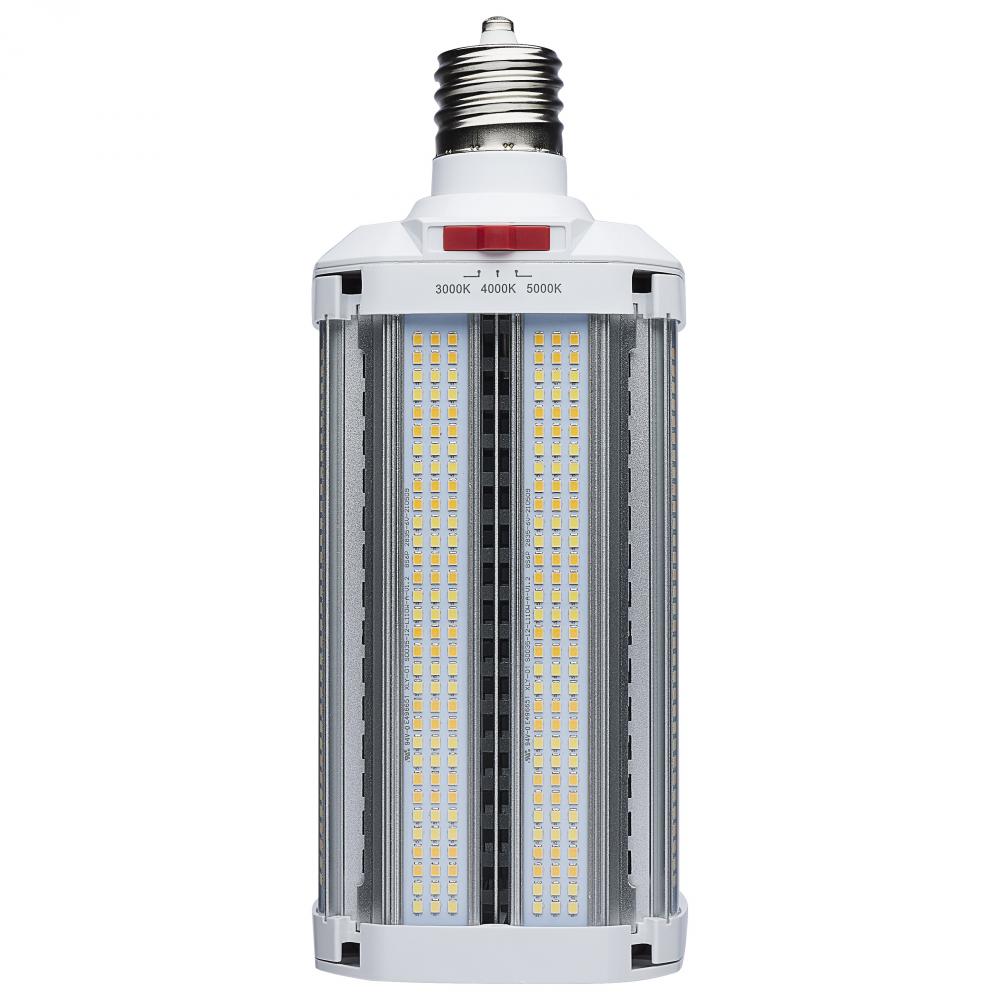

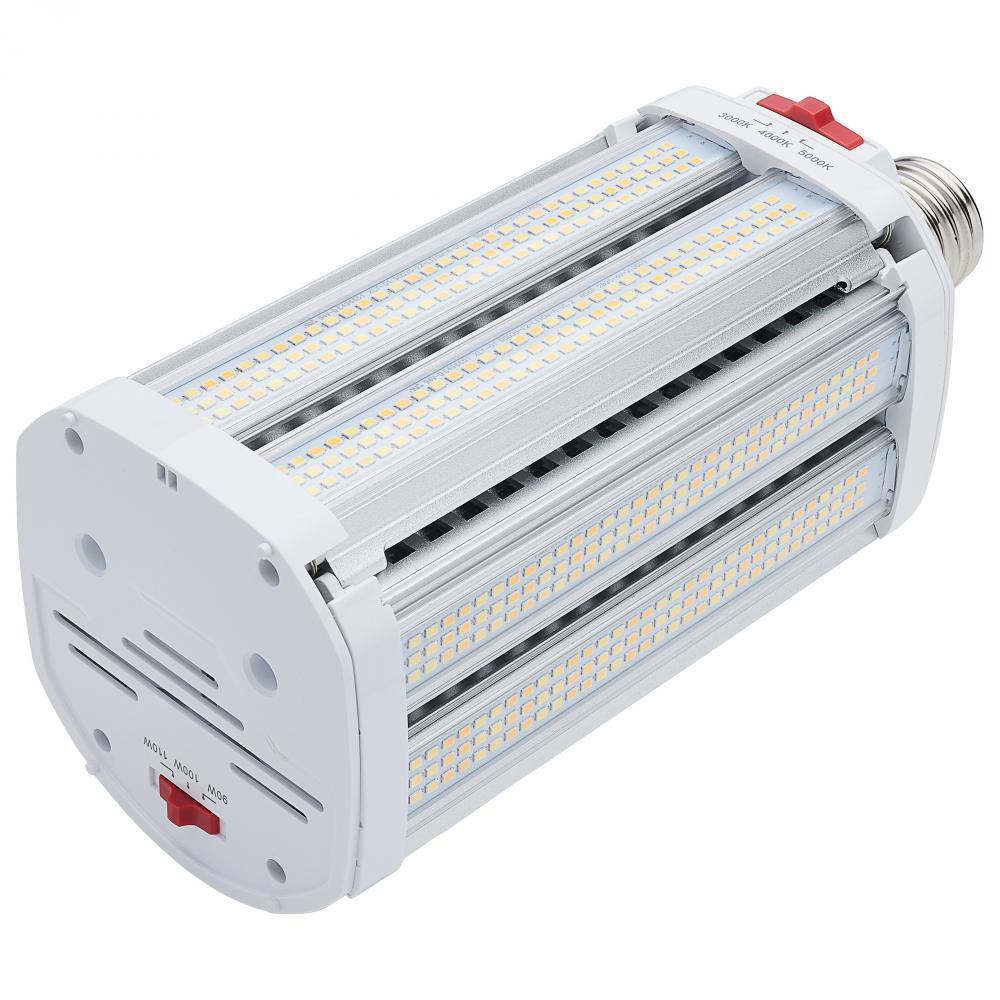

LED Shoe Box Lamp; 90/100/110 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White (X6UEF)
LED Shoe Box Lamp; 90/100/110 Wattage Selectable; 3K/4K/5K CCT Selectable; 120-277 Volt; White Finish
Product Specification
Item #
X6UEF
Dimensions
Width: 8.90"
Additional product details
Internal #
X6UEF
Category
Light Bulbs
Subcategory
LED Bulbs
Finish
White
Category
LED
Sub-Category
HID Replacements
Volts
120V-277V
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
3000K/4000K/5000K
Bulb Shape
Integrated LED
Diameter
8.9
EA Length
12.68
Harmonized Codes
8539.52.0091
Length
11.26
Lumens
13500L/14500L/15400L
Shap Carton Width
5.71
Ship Carton Height
6.46
Ship Weight
4.67
Warranty
5 Year Limited - Hi-Pro
Weight
3.68
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass; Direct wire 120-277V line voltage; No ballast or external driver required
Beam Spread
180
Bulb ANSI Base
EX39
Bulb Base
Mogul Extended
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.2707
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Soft White to Natural Light
Country Of Origin
China
CRI
80

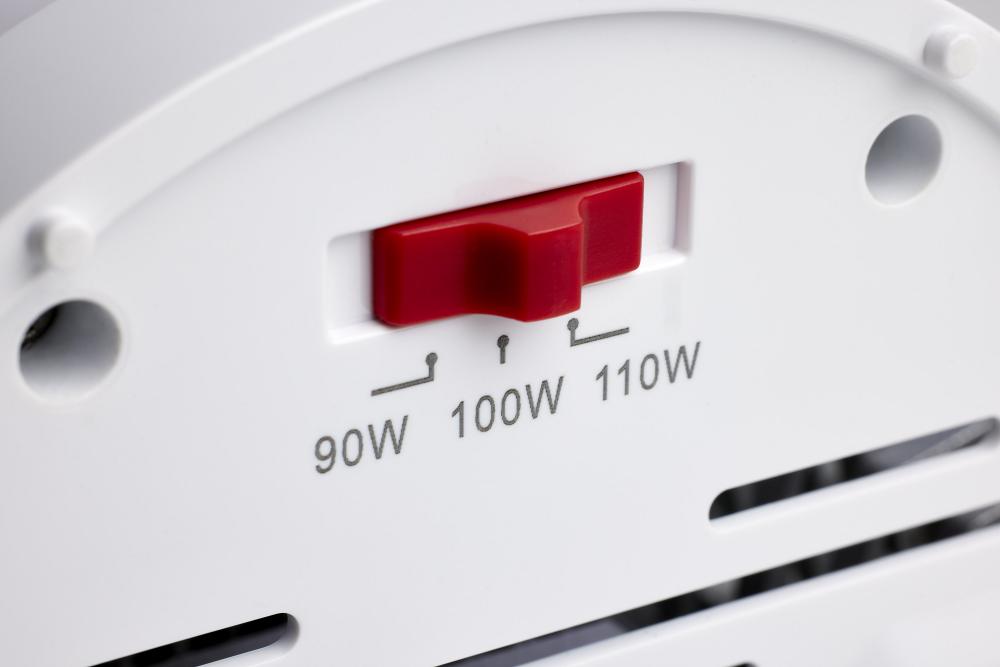

Dimmable Function
Only dimmable through wattage selection switch on lamp
Dimming Type
Step Dimming
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-7KJXW6

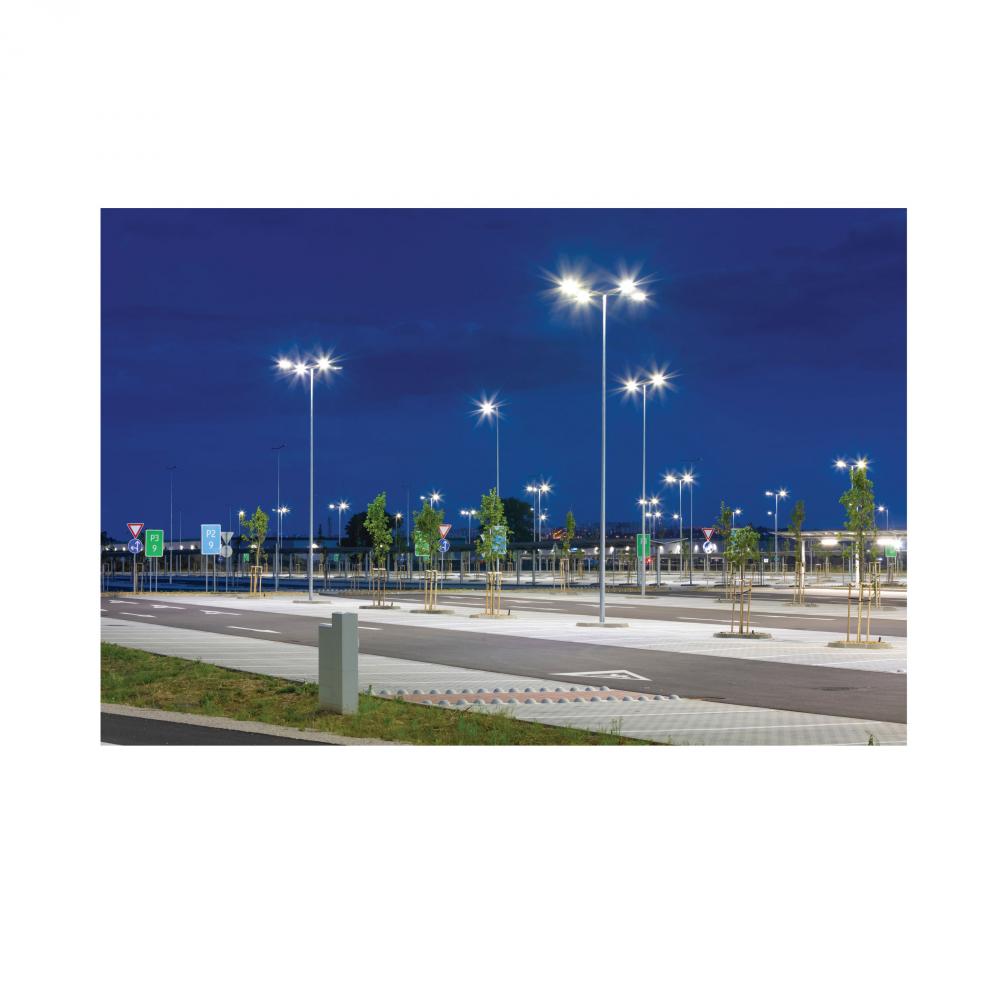

DLC Primary Use
Replacement Lamps for Outdoor Pole/Arm-Mounted Area and Roadway Luminaires (Type B)
Efficacy
150.00/145.00/140.00 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1

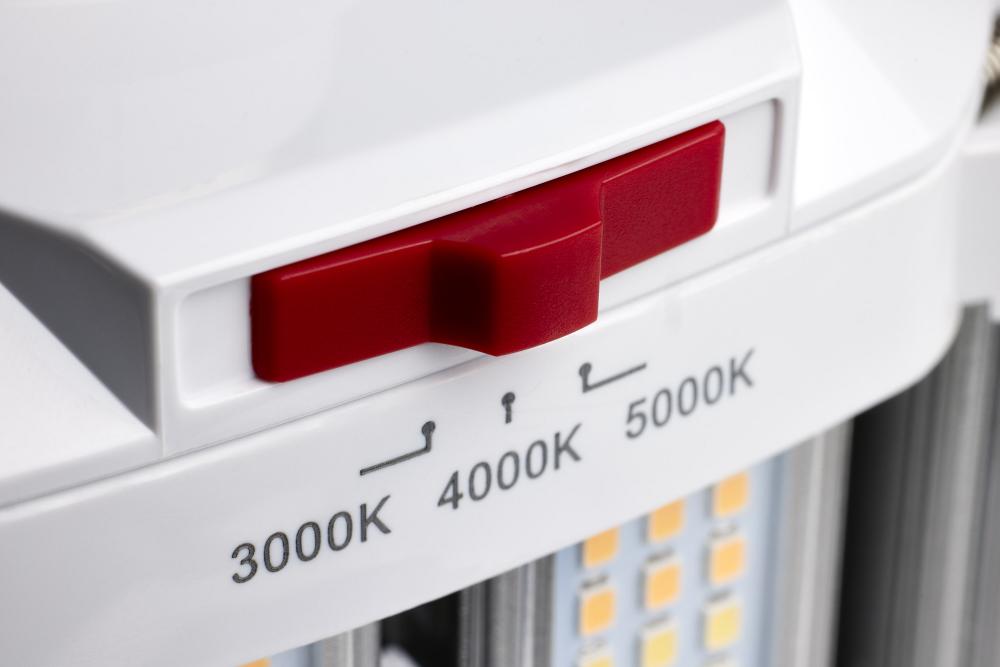

CCT and Wattage Selectable
Feature 2

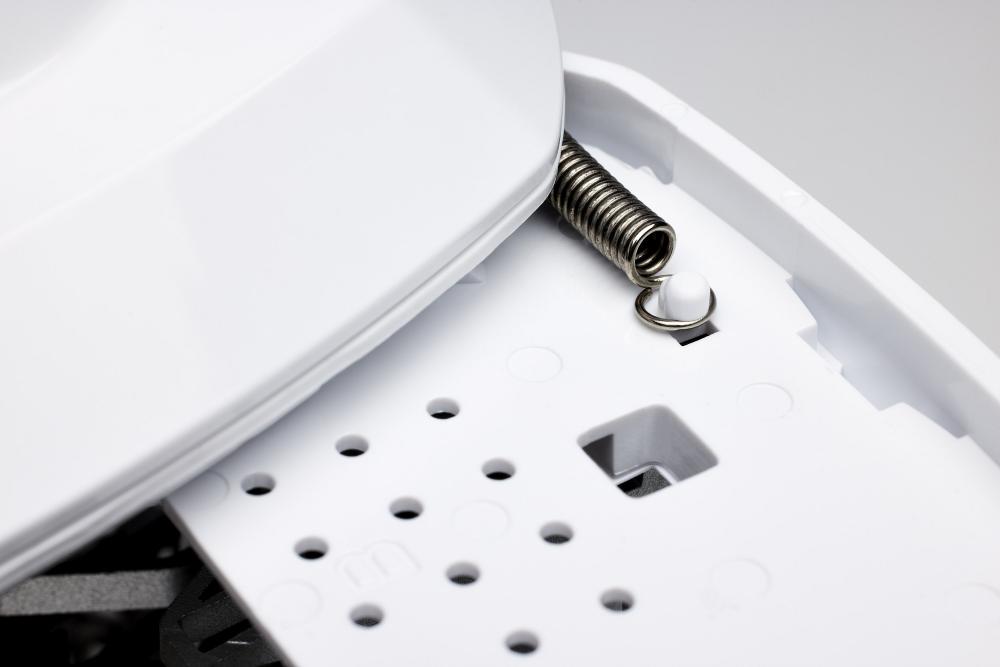

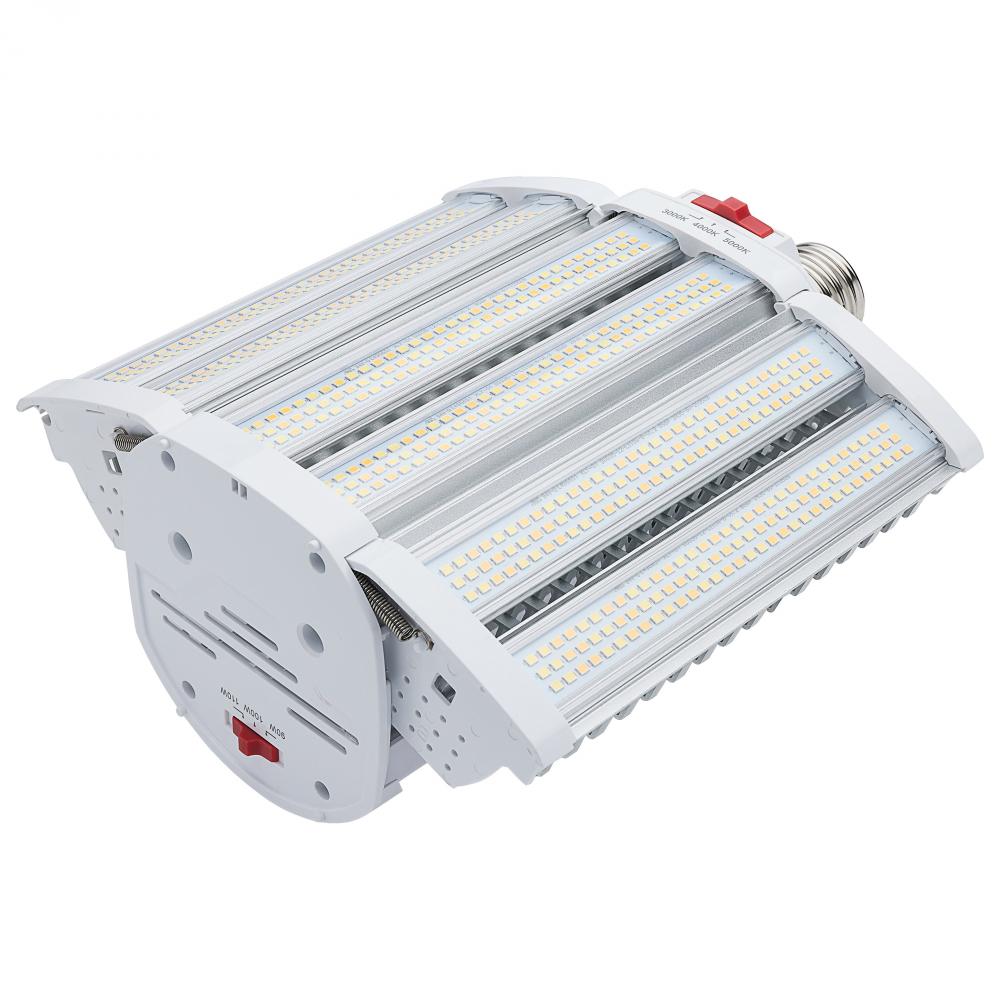

Expandable Light Panels
Feature 3

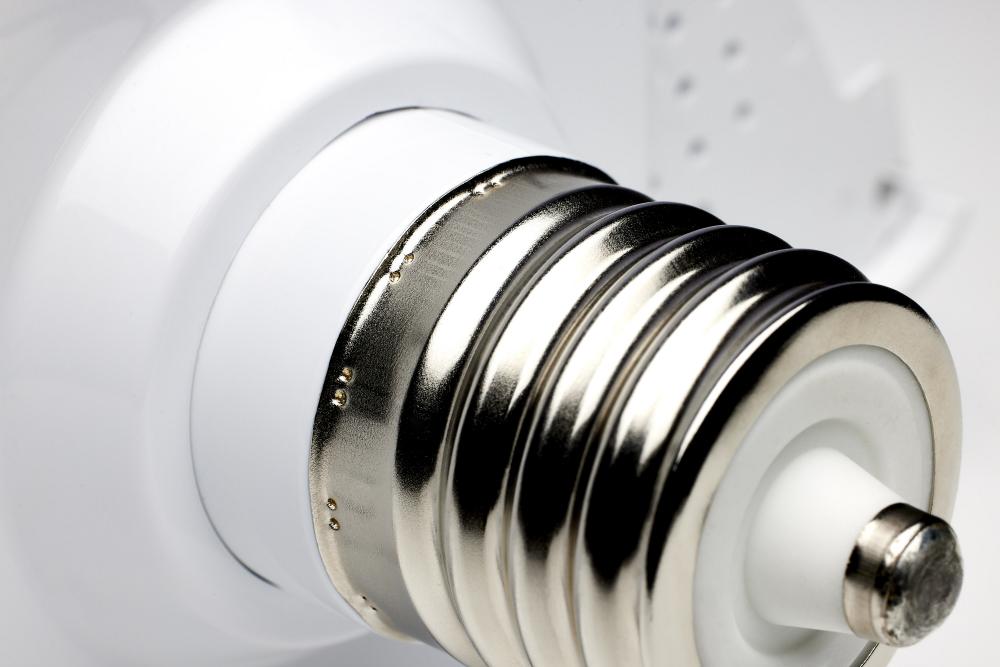

320 Degree Rotating EX39 Base
Feature 4
Integrated 4kV Surge Protection
Feature 5

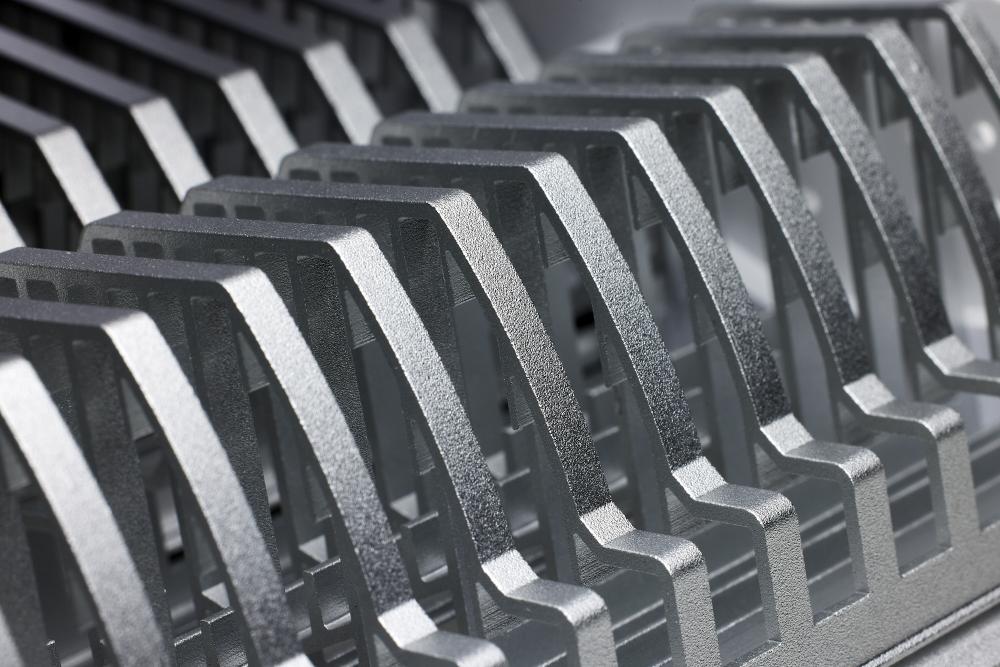

Advanced Heat Dissipation
Feature 6
Type B Ballast Bypass
Feature 7
5 Year Warranty
HID Equivalent
250W/320W/400W
Incandescent Equivalent
750W
Indoor Outdoor
Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
SATCO|NUVO's S28938R1 LED Hi-Pro Lamp offers a 320 degree rotating EX39 base making the installation of this lamp easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each
Material
Aluminum
Minimum Compartment Size
Length: 11 in. Width: 11 in. Height: 11.6 in.
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +45C (+113F)
Pack Type
Box
Power Factor
>0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO's LED Hi-Pro Lamps offer a 320 degree rotating EX39 base making the installation of these lamps easier than ever. The two different on-unit CCT and Wattage Selectable switches give the user the power to customize the lighting for each unique
SDS class
LED_Lamp
Short Description
110W/LED/HID/SB/3CCT/EX39
Style
Utility
Surge Protection
Built-in surge protection - 4KV
Technology
LED
Title 20 Compliant
No
Title 24 Compliant
No
Total Harmonic Distortion
<20%
Wattage Selectable
Yes
Watts
90W/100W/110W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
137
95
/
/ 1
($137.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 2575 items available.
