Double 3.5" Regressed Gimbal Downlight : 6Y6LF

No Image
Available

Image may not reflect selected features

Double 3.5" Regressed Gimbal Downlight (6Y6LF)

Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.

Downloads

Click Here to View Instruction Sheet

Click Here to View Catalog Page

Click Here to View Spec Sheet

Product Specification

Item #

6Y6LF

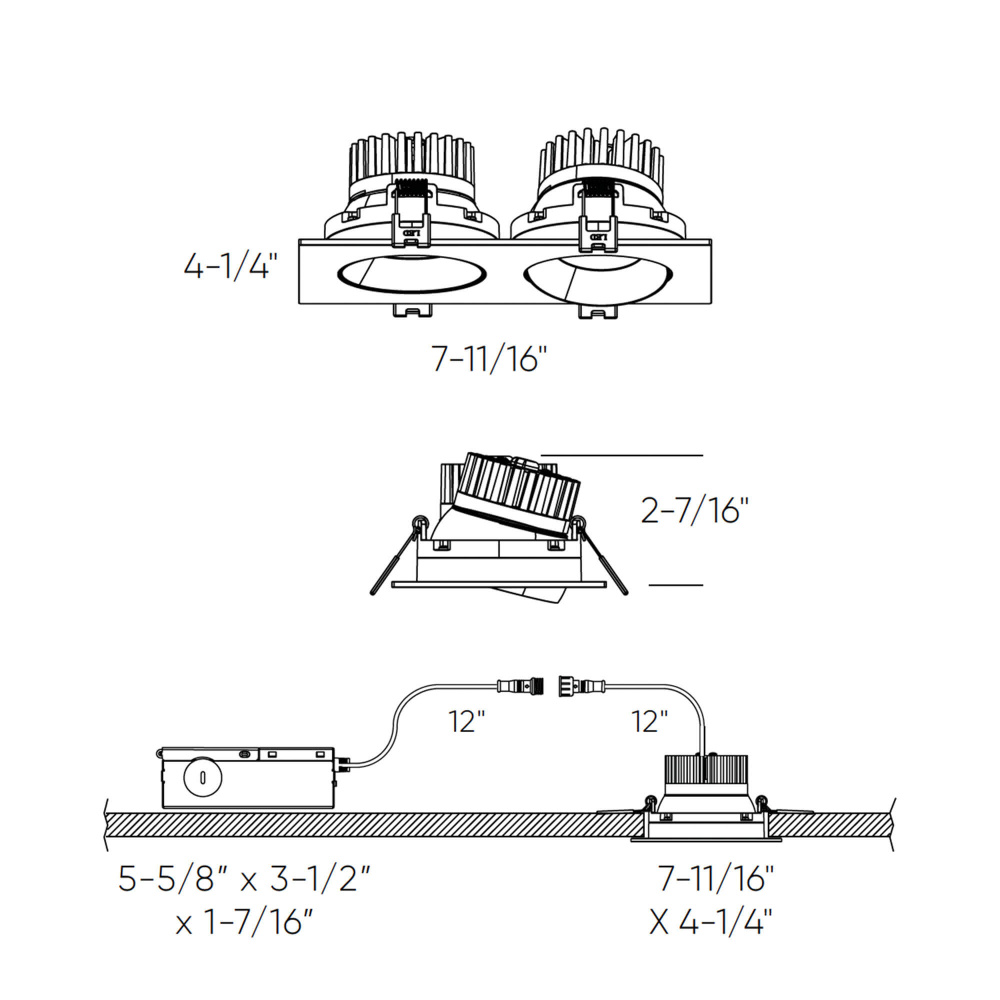

Dimensions

Height: 2.46"

Width: 4.25"

Length: 7.70"

Additional product details

Internal #

6Y6LF

Category

Recessed

Subcategory

Directional

Finish

Black

Family

Revolve

Voltage

120 V

Number of Bulbs

2 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Harmonized Codes

9405.10.00.91

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

4.5

Ship Carton Length

8.5

Ship Carton Width

Ship Weight

2.6

Warranty

5 Years Limited

Weight

2.3

Air-Tight (ASTM E283--4)

Yes

Beam Angle

40°

Bulb CRI

Country of Origin

China

Delivered Lumens

1740

Dimmer Type

Triac

Energy Star

Yes

IC Certification

Yes

Indoor

Yes

JA8

Yes

Lens Material

Plastic

Location Rating

Wet Rated

Max Wattage

24 W

Maximum Working Temperature

50°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Safety Rating

ETL Approved

Shipping Master Height

9.25

Shipping Master Length

23.5

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

10.6

Title 24

Yes

Wiring

Hardwired

Other Details:

90° tilting, 360° rotation
Ideal operating temperature: -20° to 40° C
Includes a junction box with integrated dimmable driver
Suitable for wet locations
Switch-selectable CCT: 2700K/3000K/3500 K/4000 K/5000 K

Finish

Additional options that would change other selections

Call for Price

Qty:

BASE PRICE:

136

/ / 1

($136.00 / 1)

Add To Cart

Add To Estimate

Add To Wishlist

Save To Compare

Availability:

Manufacturer availability unknown.
