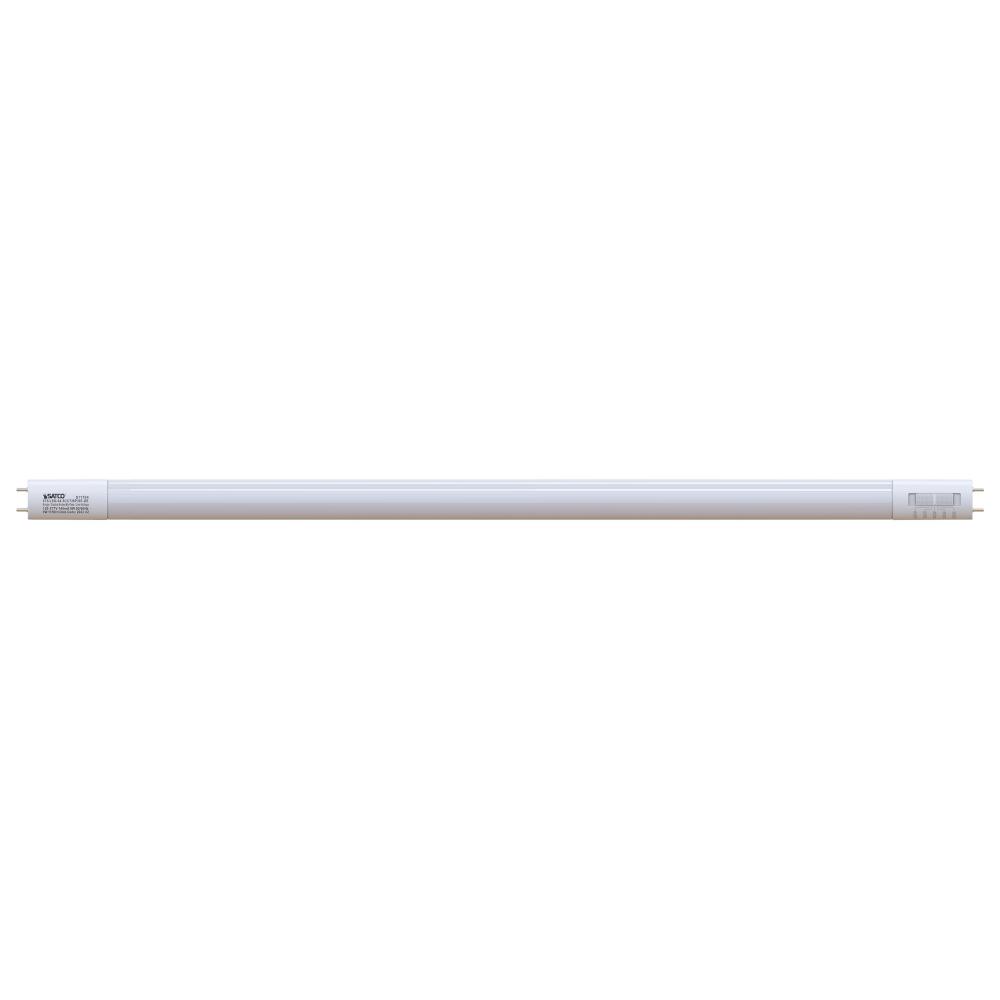

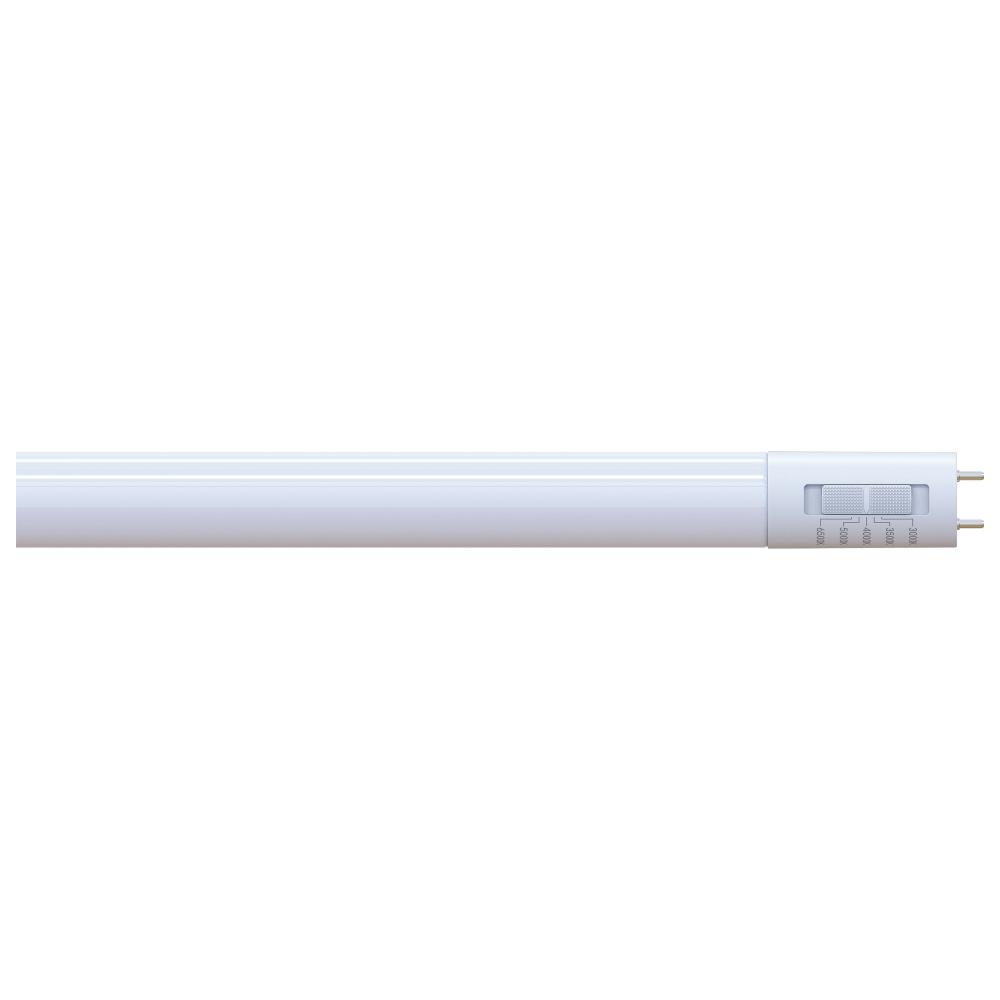

9 Watt; 2 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt (X3VQV)
9 Watt; 2 Foot LED; T8; CCT Selectable; Type B Ballast Bypass; G13 Base; 120-277 Volt
Product Specification
Item #
X3VQV
Dimensions
Width: 1.00"
Additional product details
Internal #
X3VQV
Category
Lamps
Subcategory
LED Lamps
Lumens
1101-1600
Kelvin
3001-3500
Category
LED
Sub-Category
LED T8
Volts
120V-277V
Bulb Hours
50000
Bulb Kelvin
3000K/3500K/4000K/5000K/6500K
Bulb Shape
T8
Diameter
1
EA Length
23.78
Harmonized Codes
8539.52.0051
Length
23.17
Lumens
1150L/1150L/1250L/1250L/1250L
Shap Carton Width
0.9399999999999999
Ship Carton Height
0.9399999999999999
Ship Weight
0.44
Warranty
5 Year Limited - T8 LED Bulbs - Ballast Bypass
Weight
0.25
Additional Info
Non CCT Selectable options are S39900-S39903
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
210
Bulb ANSI Base
G13
Bulb Base
Medium Bi Pin
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0122
Cartons Per Unit
1
CCT Selectable
Yes
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Warm White to Daylight
Country Of Origin
China
CRI
80
DLC Approved
Yes
DLC Classification
Standard
DLC ID
S-N3X0KC
DLC Primary Use
Internal Driver/Line Voltage (UL Type B) Lamps
Efficacy
127.78/133.33/138.89 LPW
Enclosed Fixture Use
Yes
FCC Compliant
Yes
Feature 1
MOL: 23.17 inches, MOD: 1.00 inch
Feature 2
Medium Bi Pin base
Feature 3
CCT Selectable
Feature 4
Rated for 50,000 hours
Feature 5
Damp location rated
Feature 6
Single or double-ended wiring
Feature 7
5-Year Warranty
Flourescent Equivalent
17W
Housing Color
White
Incandescent Equivalent
40W
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type B
Lamp End Type
Single Ended;Double Ended
Lamp Filament
LED
Lens Finish
Frost
Lens Material
Glass
Location Rating
Damp
Material
Glass / Plastic
Nominal Length
24
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Order In Multiples Of
25
Pack Type
Sleeve
Power Factor
0.9
Quantity In Pack
1
R9 Value
4
RoHS Compliant
Yes
Romance Copy
SATCO|NUVO'S Type B Ballast Bypass lamps are designed to replace T8 or T12 medium bi-pin fluorescent lamps. Engineered for single or double-ended wiring options, these lamps will not light unless the ballast is bypassed. Choose from 3000K, 3500K, 4000K
SDS class
LED_Lamp
Short Description
9T8/LED/24-5CCT/BP/SE-DE
Style
Utility
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
<25%
Wattage Selectable
No
Watts
9W
Finish Family
