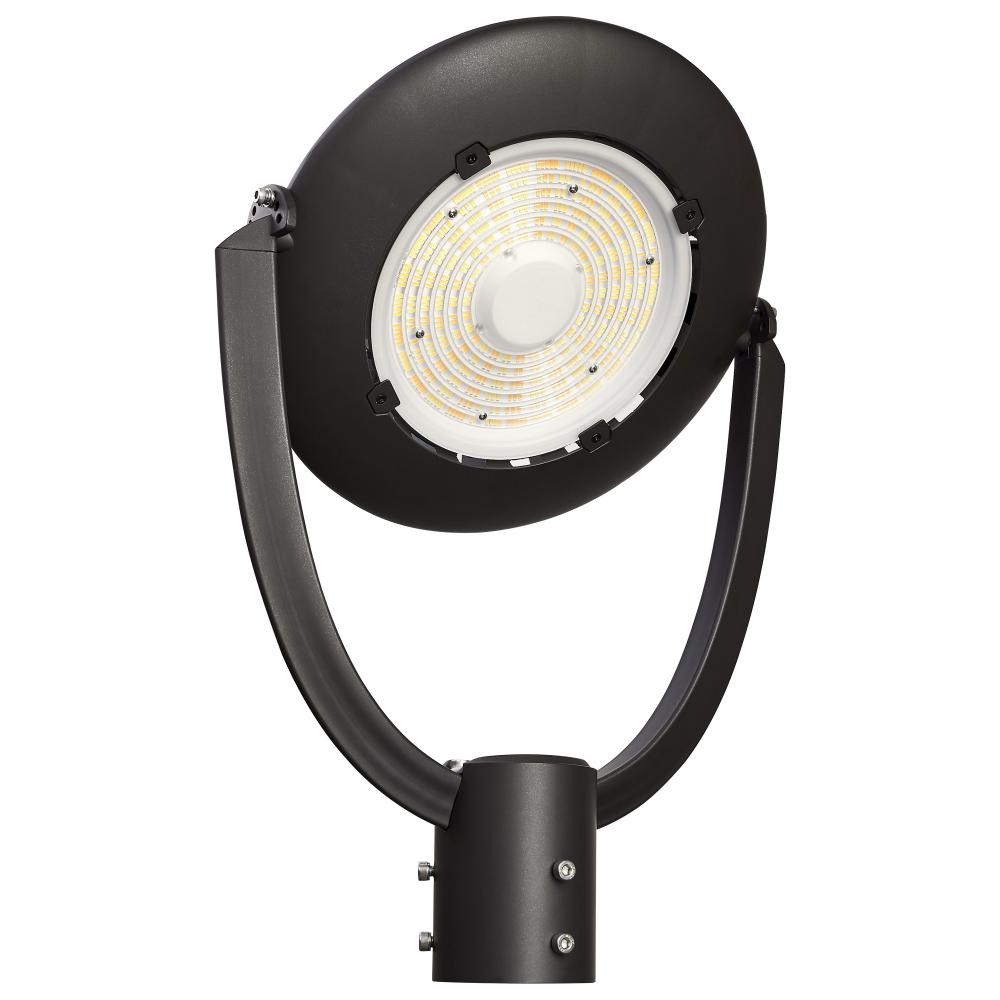

75 Watt Adjustable Post Top LED; CCT Selectable; 120-347 Volt : A6C4J

No Image
Available

Image may not reflect selected features

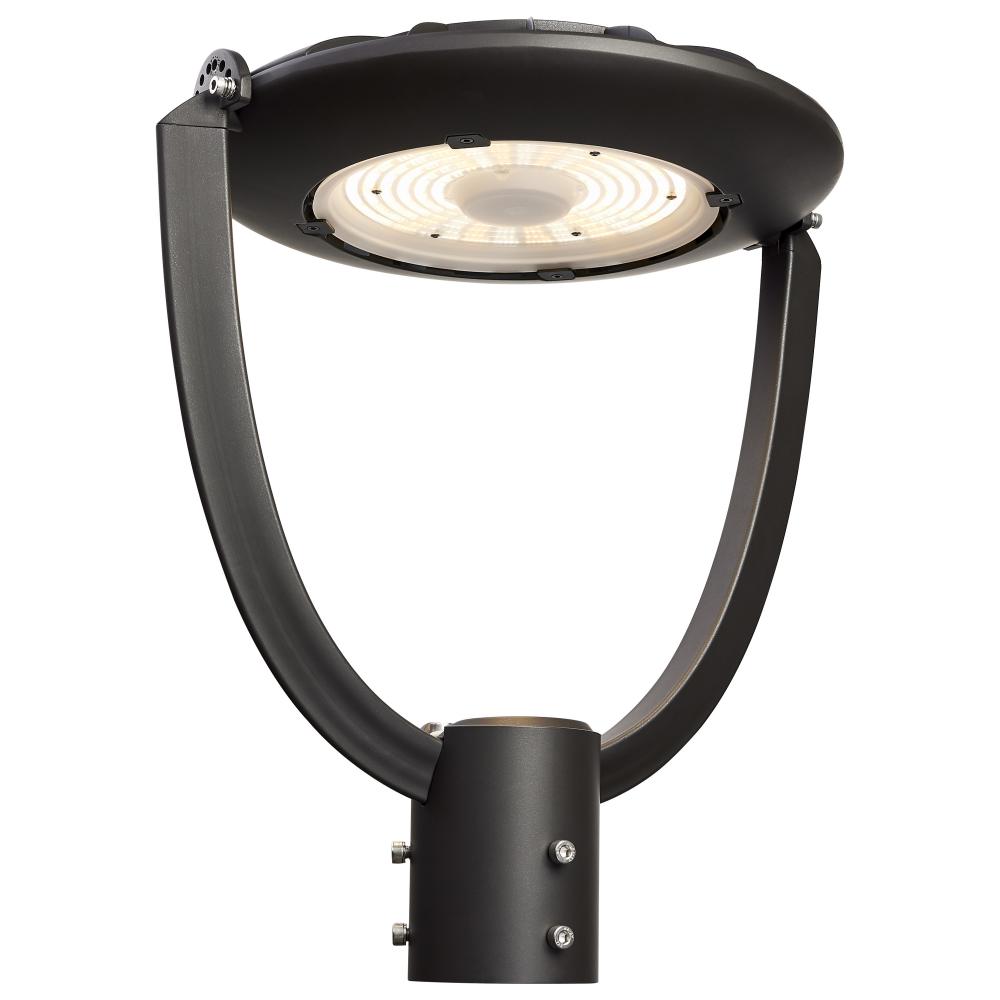

75 Watt Adjustable Post Top LED; CCT Selectable; 120-347 Volt (A6C4J)

75 Watt Adjustable Post Top LED; CCT Selectable; 120-347 Volt

Product Specification

Item #

A6C4J

Dimensions

Height: 20.59"

Width: 17.91"

Additional product details

Internal #

A6C4J

Category

Outdoor

Sub Category

Post

Style

Commercial

Avg Rated Hours

50000

Bulb Shape1

Integrated LED

Bulb Type1

LED

Color Temperature

Warm White to Natural Light

Dimmable

Yes-Dimmable

Each Height

7.09

Each Length

28.74

Each Width

20.28

Lumens

9220L/10100L/9720L

Tariff Code

9405.42.6000

Warranty

5 Year Limited - Fixtures

Amps

0.625-0.216A

ANSI Base

Integrated

BAA Compliant

Beam Angle

B_U_G_Rating

B3-U3-G1

CA Prop-65

Lead

CCT Selectable

Yes

CEC

T20 Exempt - Fixtures Not Regulated

CEC Terse

Lawful for sale in California

CEC Web Text

Lawful for sale

Country Of Origin

Vietnam

CRI

Dimmable Function

0-10V Dimming

DLC Classification

Premium

DLC Primary Use

Outdoor Pole/Arm-Mounted Decorative Luminaires

Each Cube

2.3914

Each Quantity

Efficacy

122.93/134.67/129.60 LPW

FCC Compliant

Yes

Feature 1

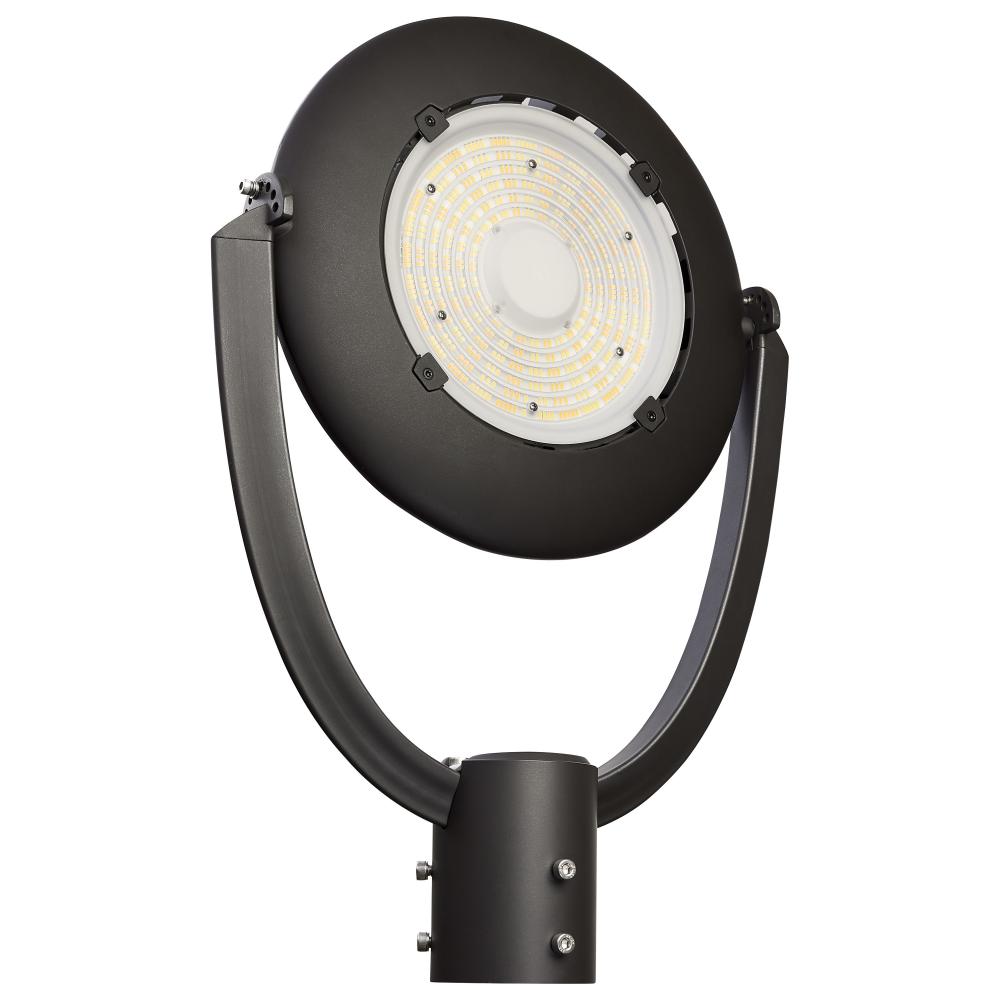

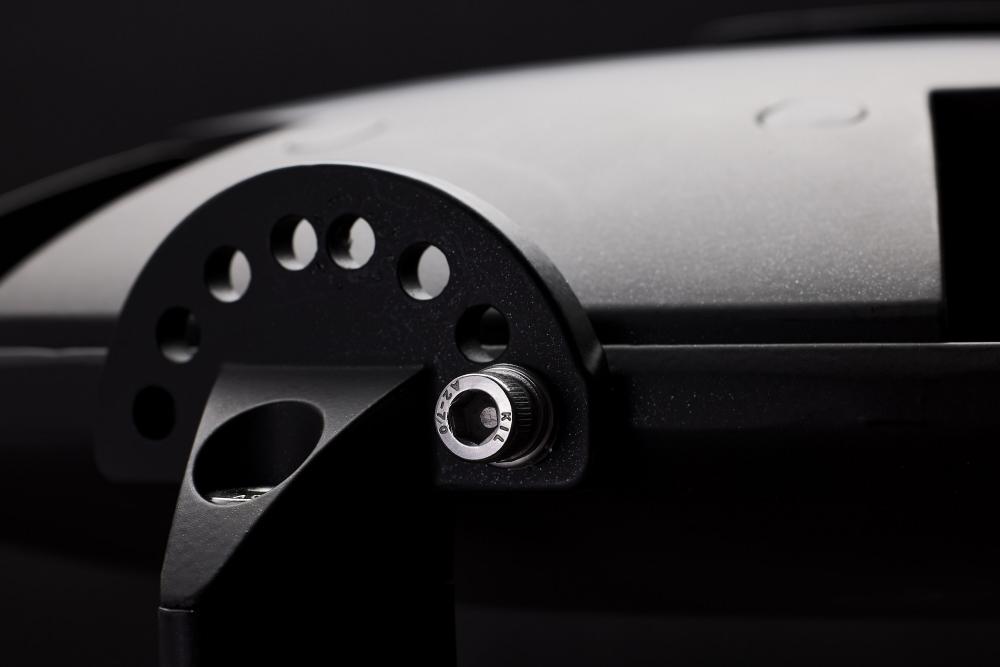

0-90 degree adjustable illumination

Feature 2

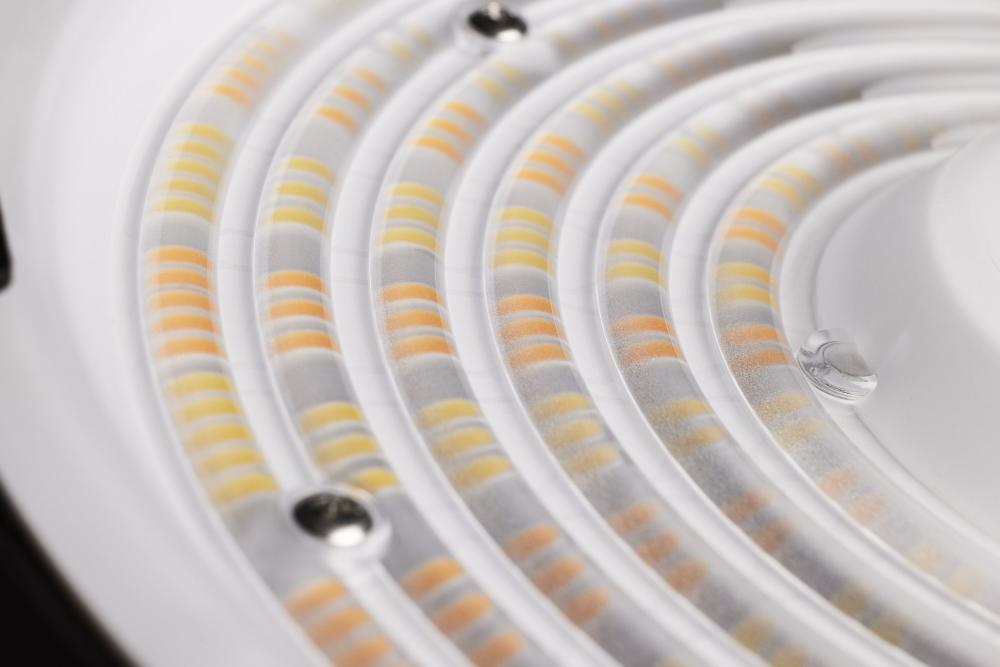

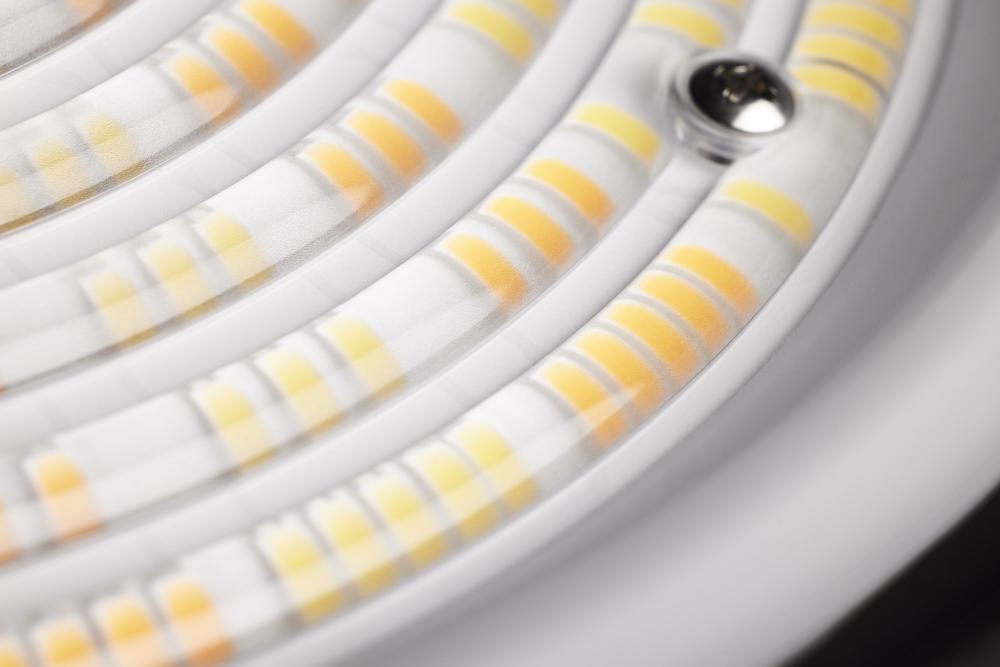

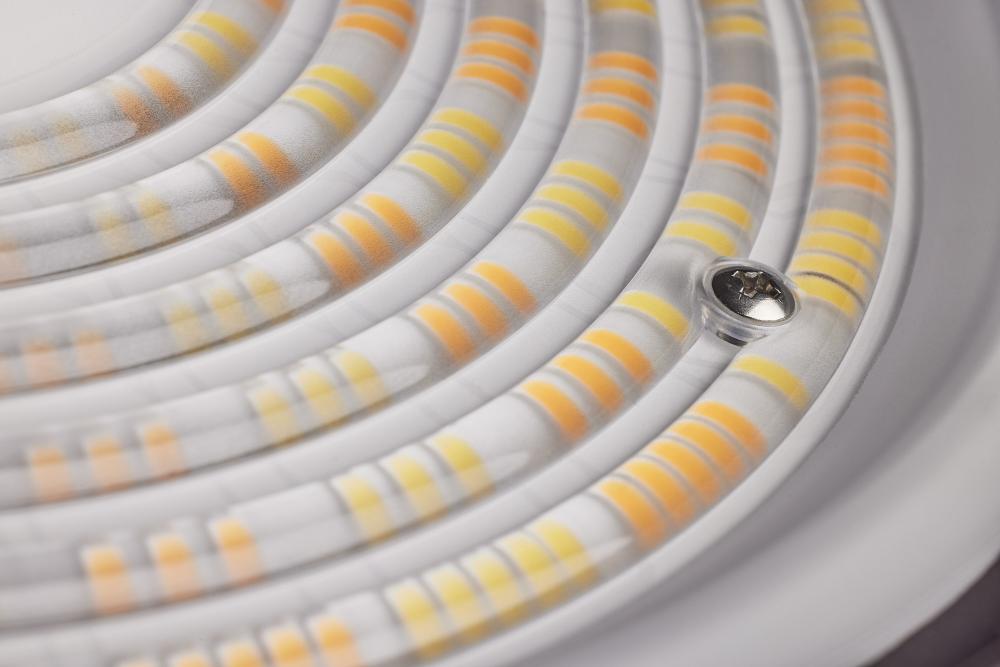

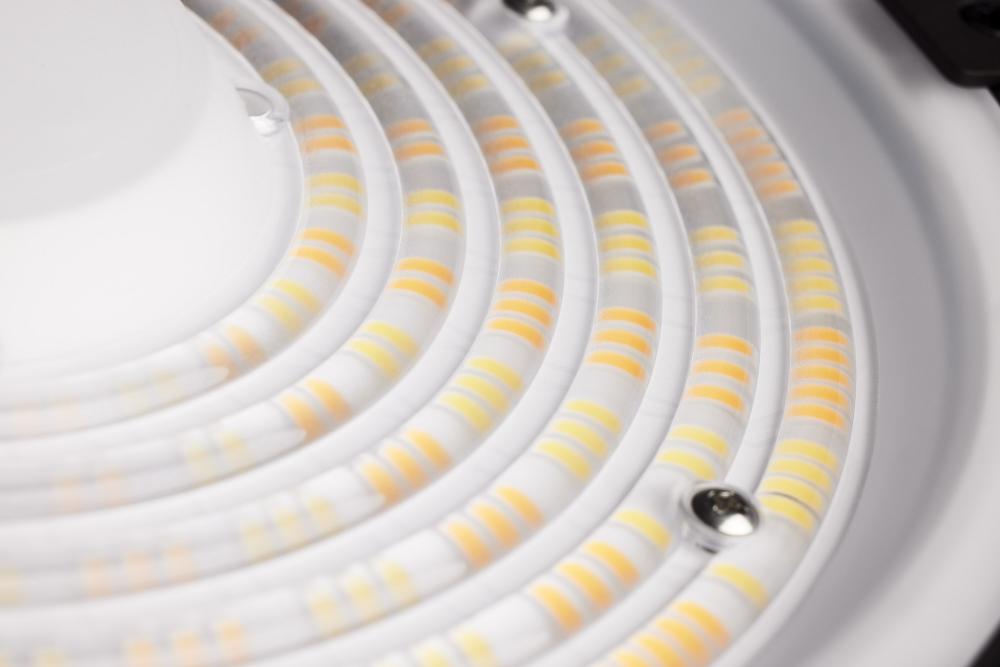

3K/4K/5K Color Selectable

Feature 3

IK08 Impact Rated

Feature 4

IP65 Rated

Feature 5

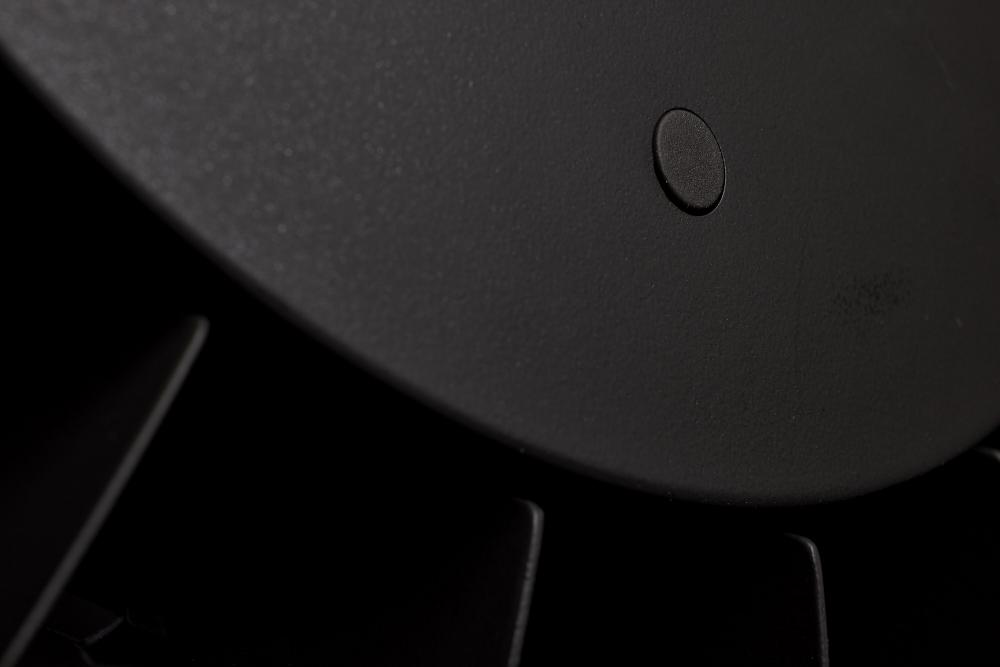

Bronze Powder Coated Finish

Feature 6

DLC 5.1 Listed

Finish Family

Bronze

Fitter

3 in.

Impact Rating (IK)

IK08

Incandescent Equivalent

175W

Includes

3 Inch Fitter

Indoor Outdoor

Outdoor

IP Rating

IP65

JA8 Compliant

Lens Material

Polycarbonate (PC)

Long Description

SATCO | NUVO's 65-892 LED Adjustable Post Top Exterior fixture offers a sleek, contemporary design ideal for general lighting environments requiring a highly efficient architectural light source with precise control. Color selectable choices include 30

Material

Die-Cast Aluminum

Mounting Procedure

Post

Operating Frequency

50/60Hz

Operating Temp

-40C (-40F) to +50C (+122F)

Pack Type

Brown Box

Power Factor

>0.9

Quantity In Pack

R9 Value

Replaceable Light Source

RoHS Compliant

Yes

Romance Copy

SATCO|NUVO's LED Adjustable Post Top exterior fixtures offer a sleek, contemporary design ideal for commercial pathways, parks, campuses, and general area lighting environments requiring a highly efficient architectural light source with precise contro

Safety Listing

cULus

SDS class

LED_Fixture

Short Description

LED 75W POST TOP CCT SELECT

Specification Notes

Powder Coated

Temperature (CCT)

3000K/4000K/5000K

Title 20 Compliant

Total Harmonic Distortion

15%

Wattage Selectable

Weight Lb.

18.5
