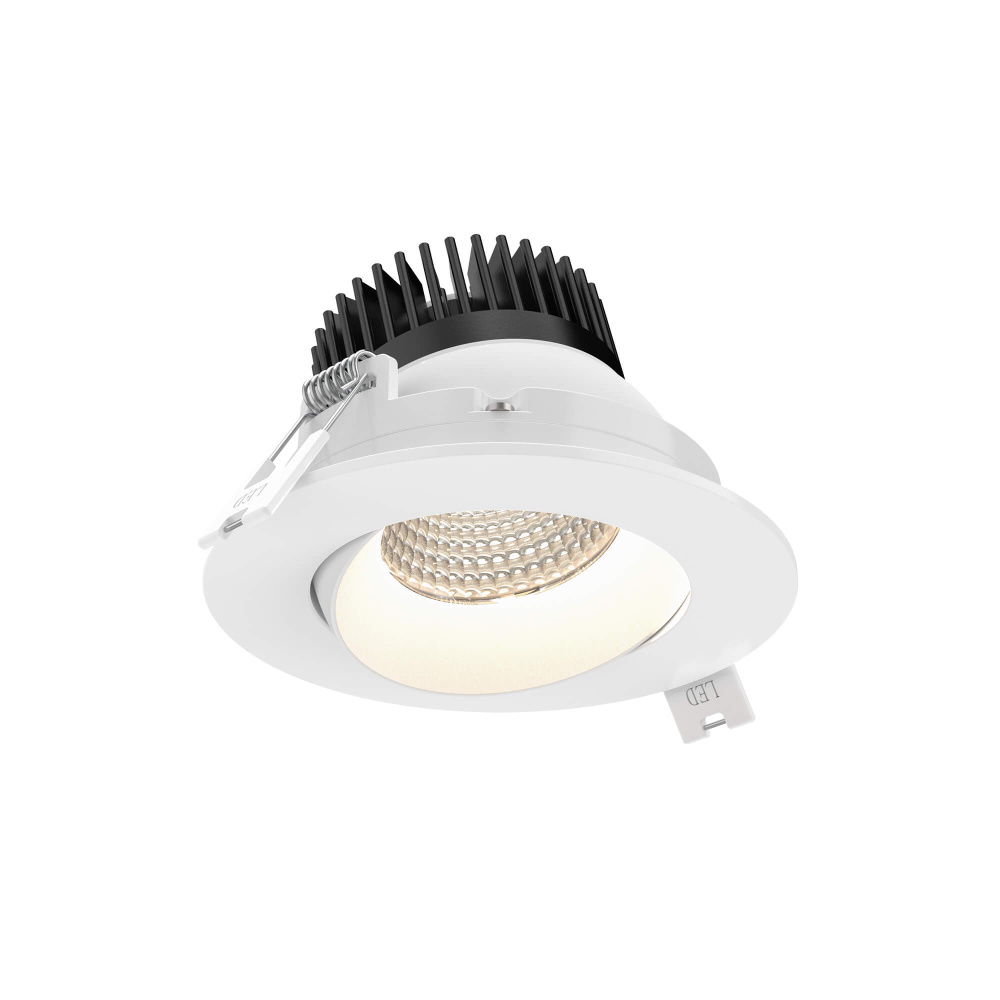

3.5" Regressed Gimbal Downlight (6Y3P9)

Our Recessed family has grown with a new range of adjustable downlights. The effortless design and high functionality of these fixtures are sure to make a welcome addition in any room.

Downloads

Click Here to View Installation Sheet

Click Here to View Catalog Sheet

Click Here to View Spec Sheet

Product Specification

Item #

6Y3P9

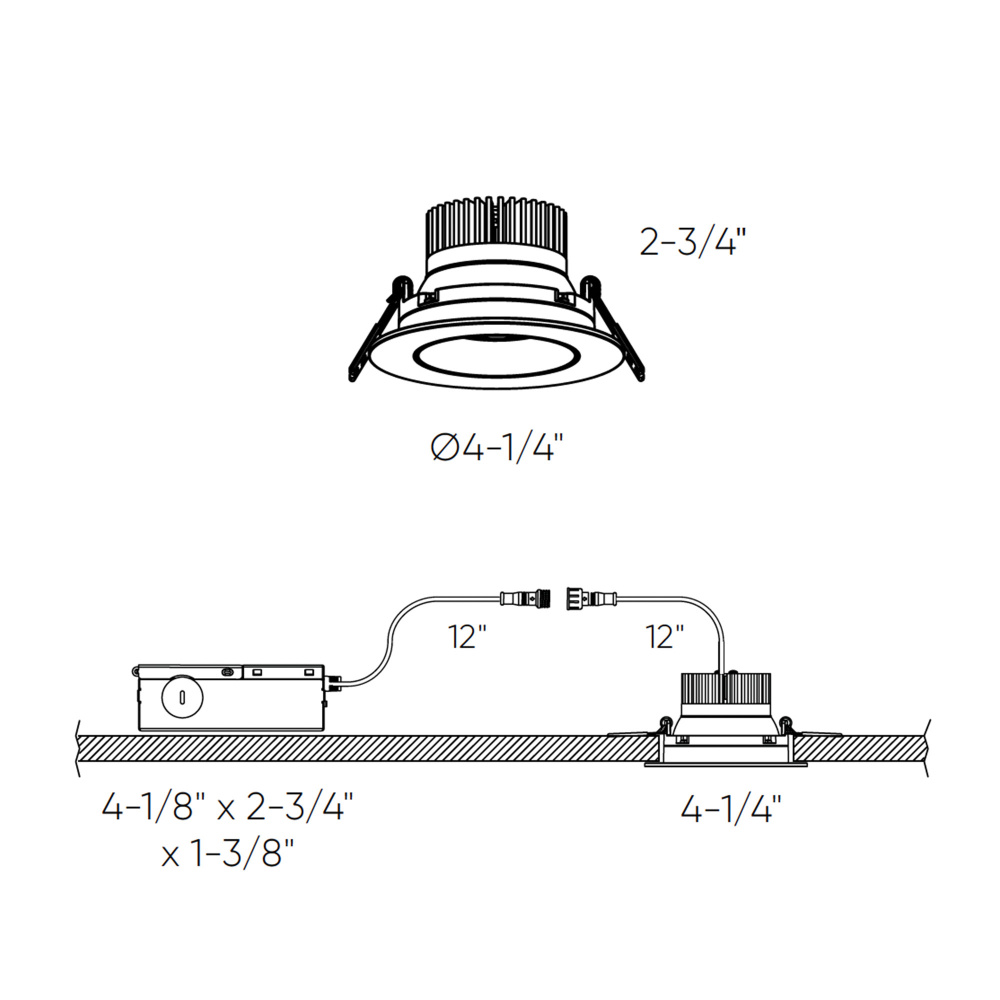

Dimensions

Height: 2.31"

Width: 4.25"

Length: 4.25"

Additional product details

Internal #

6Y3P9

Category

Recessed

Subcategory

Directional

Finish

White

Family

Revolve

Voltage

120 V

Number of Bulbs

1 Bulbs

Bulb Dimmable

Yes

Bulb Hours

50000

Harmonized Codes

9405.10.00.91

Kelvin

2700, 3000, 3500, 4000, 5000

Material

Aluminum

Ship Carton Height

4.75

Ship Carton Length

5.75

Ship Carton Width

4.75

Ship Weight

1.4

Warranty

5 Years Limited

Air-Tight (ASTM E283--4)

Yes

Beam Angle

40°

Bulb CRI

Country of Origin

China

Delivered Lumens

860

Dimmer Type

Triac/ELV

Energy Star

Yes

IC Certification

Yes

Indoor

Yes

JA8

Yes

Lens Material

Acrylic

Location Rating

Wet Rated

Max Wattage

12 W

Maximum Working Temperature

40°C

Minimum Working Temperature

-20°C

Outdoor

Yes

Prop 65

Yes

Safety Rating

ETL Approved

Shipping Master Height

14.76

Shipping Master Length

19.3

Shipping Master Quantity

Shipping Master Weight

Shipping Master Width

11.61

Title 24

Yes

Wiring

Hardwired

Other Details:

30° tilting, 360° rotation
40° beam angle
IC certification (suitable for direct contact with insulation)
Suitable for wet locations
Switch-selectable CCT: 2700 K/3000 K/3500 K/4000 K/5000 K in canopy
