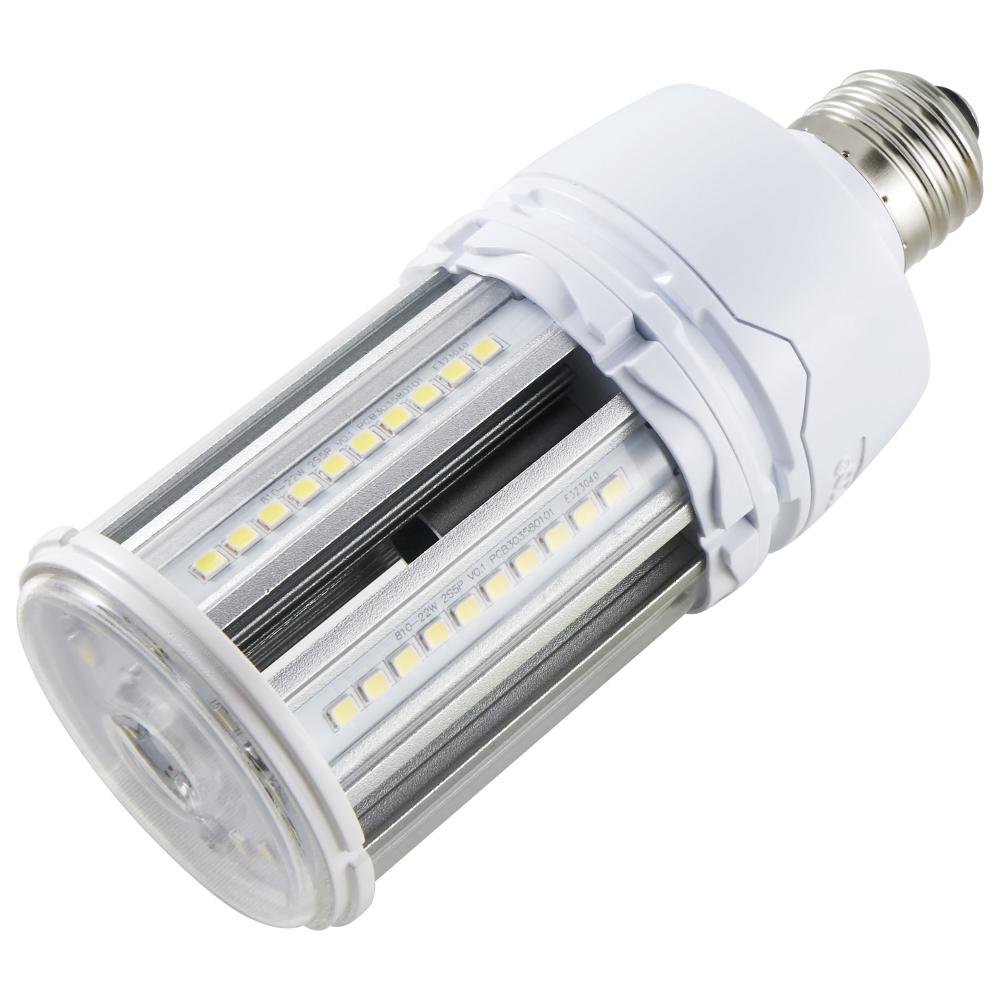

22 Watt LED HID Replacement; 80 CRI; 5000K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro (LVV1X)
22 Watt LED HID Replacement; 80 CRI; 5000K; Type B; Ballast Bypass; Medium base; Economy Hi-Pro
Product Specification
Item #
LVV1X
Dimensions
Width: 2.39"
Additional product details
Internal #
LVV1X
Category
Light Bulbs
Subcategory
LED Bulbs
Style
Traditional
Lumens
3001-3300
Kelvin
4501-5000
Category
LED
Sub-Category
HID Replacements
Volts
100V-277V
Bulb Dimmable
Non-Dimmable
Bulb Hours
35000
Bulb Kelvin
5000K
Bulb Shape
Corncob
Diameter
2.39
EA Length
2.87
Harmonized Codes
8539.52.0091
Length
5.71
Lumens
3036L
Shap Carton Width
2.87
Ship Carton Height
7.28
Ship Weight
0.85
Warranty
3 Year Limited - Hi-Pro
Weight
0.77
BAA Compliant
No
Ballast Bypass Direct
Ballast Bypass
Ballasting Requirements
Ballast Bypass
Beam Spread
300
Bulb ANSI Base
E26
Bulb Base
Medium
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0347
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - >2600 Lumens
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
80
DLC Approved
No
Efficacy
138.00 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
High lumen per watt ratio
Feature 2
Superior LED light output
Feature 3
Rated for use in enclosed fixtures
Feature 4
Advanced Thermal Management
Feature 5
Suitable for use in damp locations
Feature 6
Up to 35000 Hours of use
Feature 7
2kV built-in surge protection
HID Equivalent
100W
Housing Color
White
Incandescent Equivalent
100W
Indoor Outdoor
Indoor;Outdoor
Installation Notes
Not for use in vapor tight fixtures.
IOT Enabled
No
Lamp Ballast Type A/B/C
Type B
Lamp Filament
LED
Lens Finish
Clear
Lens Material
Polycarbonate (PC)
Location Rating
Damp
Long Description
Satco's S49391 22-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. Th
Material
Aluminum / Polycarbonate (PC)
Minimum Compartment Size
Length: 6 in. Width: 6 in. Height: 8.5 in.
Operating Frequency
50/60Hz
Operating Temp
-30C (-22F) to +60C (+140F)
Pack Type
Box
Photocell
No
Power Factor
>0.9
Quantity In Pack
1
R9 Value
13
RoHS Compliant
Yes
Romance Copy
Satco's 22-watt Hi-Pro LED lamp is an energy efficient lighting solution for large scale lighting applications. Perfect for gymnasiums, factory floors, health clubs, and warehouses, this lamp is designed to deliver clean, efficient LED light. This vers
SDS class
LED_Lamp
Short Description
22W/LED/HP/850/100-277V/E26
Style
Contemporary
Surge Protection
Built-in surge protection - 2KV
Technology
LED
Title 20 Compliant
No
Wattage Selectable
No
Watts
22W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
28
95
/
/ 1
($28.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 9664 items available.
