Product Overview

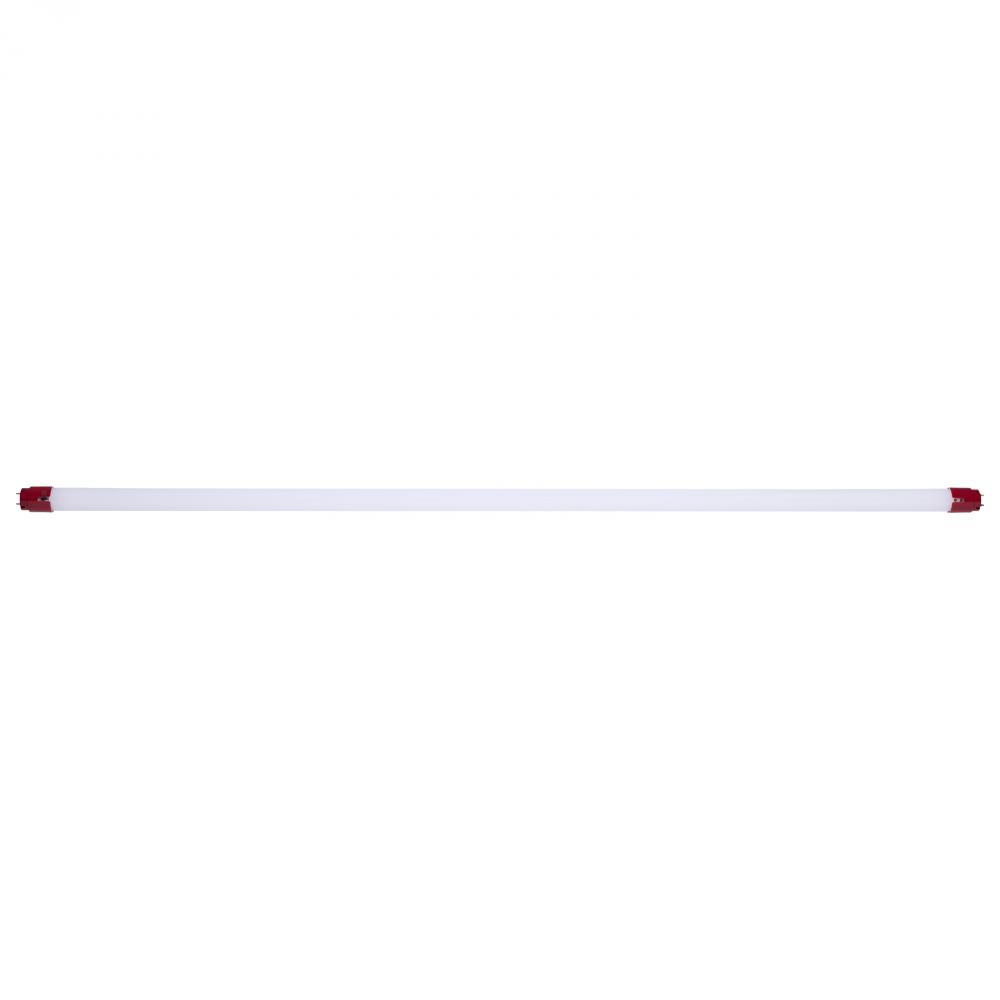

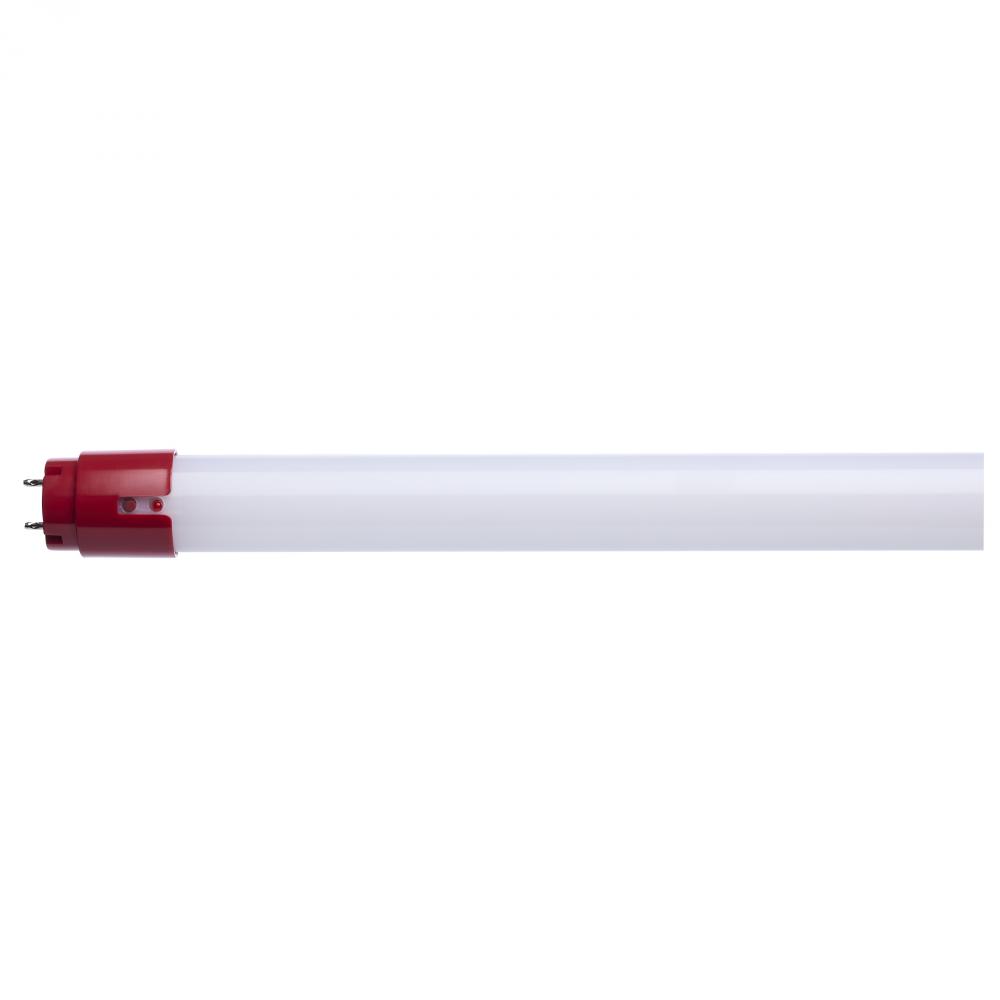

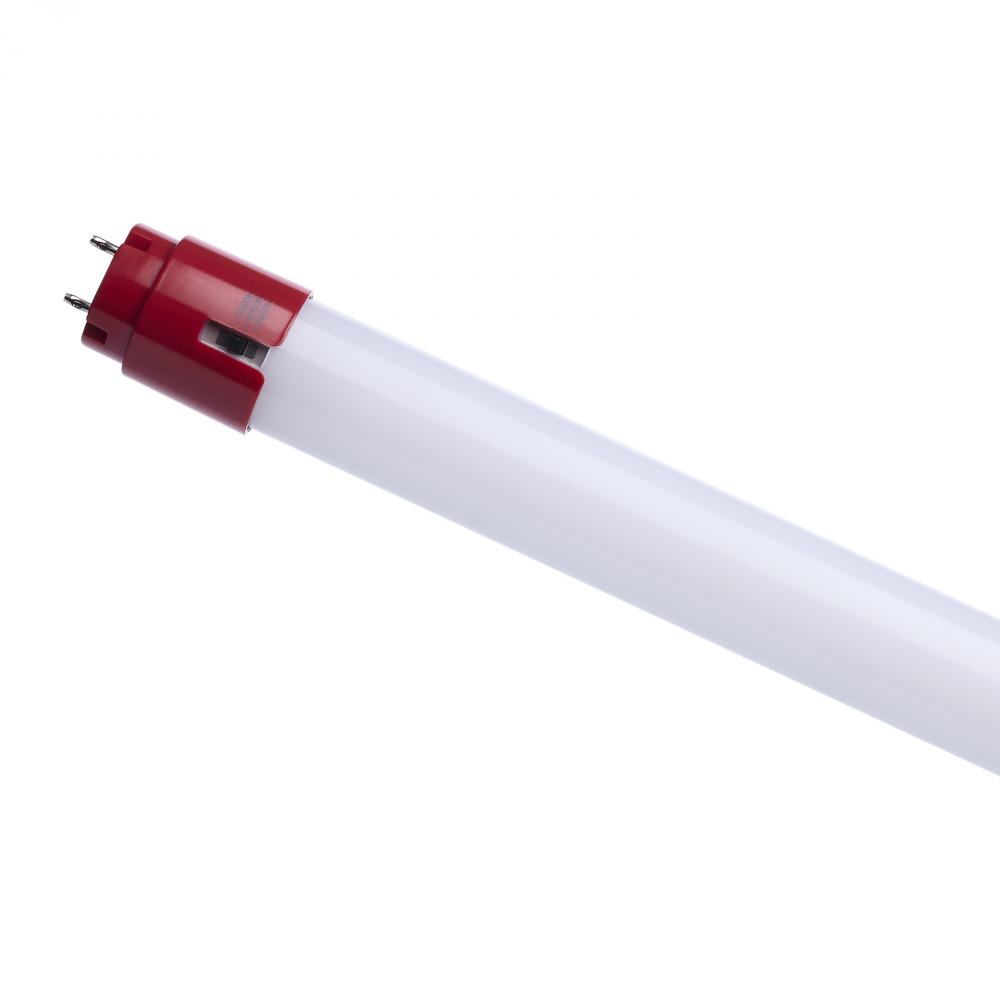

15 Watt T8 LED; 48 Inch; 35K/40K/50K CCT Selectable; Medium Bi Pin Base; Type B Ballast Bypass; 120-277V

Refinement Options

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3500K/4000K/5000K

Bulb Shape:

T8

Diameter:

1.16

EA Length:

51.57

Harmonized Codes:

8539.52.0051

Length:

47.78

Lumens:

2000L

Shap Carton Width:

1.38

Ship Carton Height:

1.38

Ship Weight:

1.15

Warranty:

5-Years

Weight:

1.12

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Bypass

Battery Chemistry:

Lithium-ion (Li-ion)

Beam Spread:

140

Bulb ANSI Base:

G13

Bulb Base:

Medium Bi Pin

Bulb Finish:

Frost

Carton Cubic Feet:

0.0568

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Neutral White to Natural Light

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-ZM2STB

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

133.33 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

4' T8 with Integrated Emergency Battery Backup

Feature 10:

DLC Listed

Feature 2:

Type B - Ballast Bypass

Feature 3:

Damp location rated

Feature 4:

Enclosed fixture rated

Feature 5:

CCT Selectable - 3500K/4000K/5000K

Feature 6:

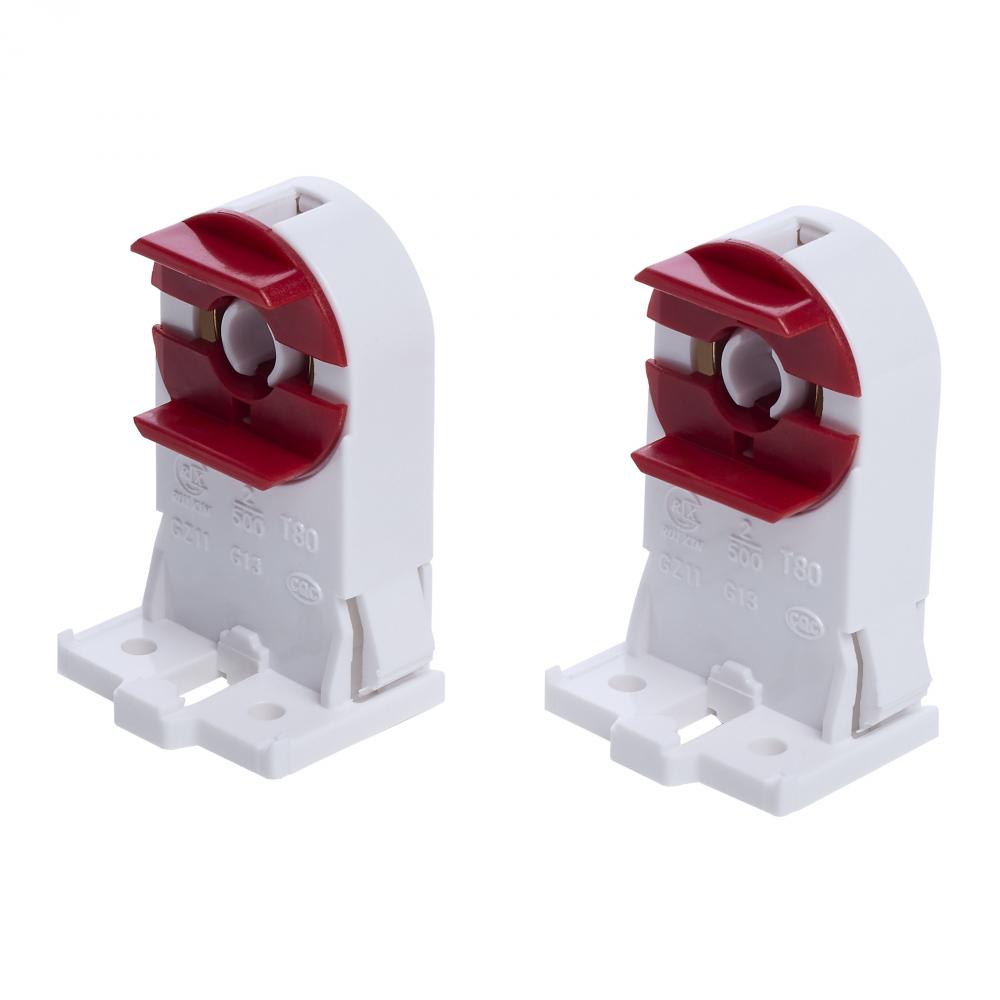

Pre-Wired Lamp Holders Included

Feature 7:

Red End-Caps and Lamp Holders for Easy Identification

Feature 8:

Replaces 32W Fluorescent Lamps

Feature 9:

5 Year Warranty

Flourescent Equivalent:

32W

Indoor Outdoor:

Indoor

IP Rating:

IP20

JA8 Compliant:

No

Lamp Ballast Type A/B/C:

Type B

Lamp Filament:

LED

Leg Spacing:

0.51

Location Rating:

Damp

Long Description:

SATCO NUVO's S11732 LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can b

Material:

Aluminum / Polycarbonate (PC)

No Switching Cycles:

1000

Nominal Length:

48

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

0C (+32F) to +45C (+113F)

Pack Type:

Sleeve

Quantity In Pack:

1

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's LED T8 Lamps with Emergency Battery Backup are UL924 listed for use in emergency lighting applications. Custom lamp holders and set screws lock the lamp in place for a secure installation, and lamps feature red endcaps so they can be easil

SDS class:

LED_Lamp

Short Description:

15WT8/LED/CCT/EM/BP

Specification Notes:

90-minute discharge time; 24 Hour Recharge Time

Technology:

LED

Title 20 Compliant:

Yes

Title 24 Compliant:

No

Total Harmonic Distortion:

<25%

Wattage Selectable:

No

Watts:

15W
