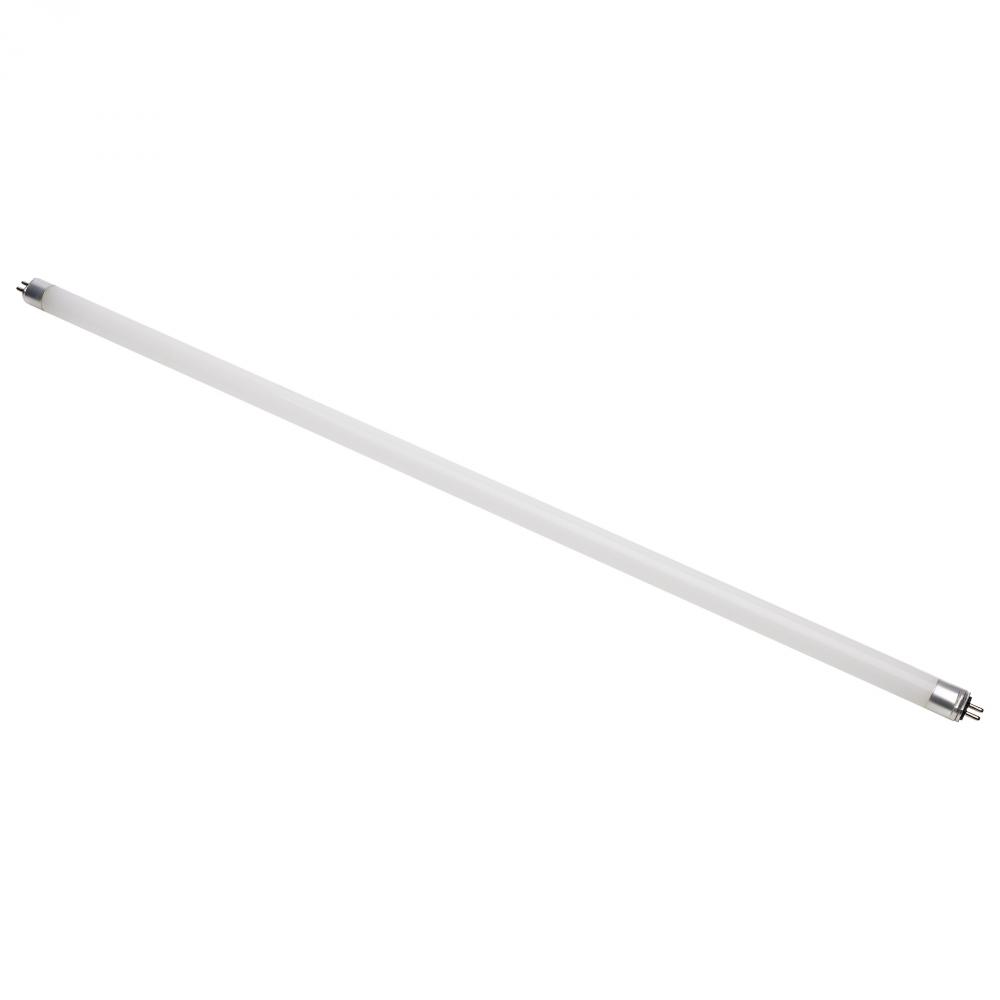

11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens (X6PGC)
11 Watt; 2 Foot; T5 LED; Miniature Bi Pin Base; 5000K; Type A; 1400 Lumens
Product Specification
Item #
X6PGC
Dimensions
Width: 0.63"
Additional product details
Internal #
X6PGC
Category
Lamps
Subcategory
LED Lamps
Lumens
1101-1600
Kelvin
4501-5000
Category
LED
Sub-Category
LED T5
Volts
Ballast Dependent
Bulb Dimmable
Yes-Dimmable
Bulb Hours
50000
Bulb Kelvin
5000K
Bulb Shape
T5
Diameter
0.63
EA Length
22.17
Harmonized Codes
8539.52.0051
Length
22.5
Lumens
1400L
Shap Carton Width
0.65
Ship Carton Height
0.65
Ship Weight
0.13
Warranty
5 Year Limited - T5 LED Bulbs
Weight
0.13
Additional Info
Light Emitting Area of 325 degrees; System Wattage (Type A) - 14W
BAA Compliant
No
Ballast Bypass Direct
Direct
Ballasting Requirements
Ballast required
Beam Spread
185
Bulb ANSI Base
G5
Bulb Base
Miniature Bi Pin
Bulb Finish
White
Burning Position
Universal
Carton Cubic Feet
0.0054
Cartons Per Unit
1
CCT Selectable
No
CEC
Exempt - Base Not Regulated
CEC Terse
Lawful for sale in California
CEC Web Text
Lawful for sale
Color Temprature
Natural Light
Country Of Origin
China
CRI
82
Dimmable Function
Only in Type A mode; Check Ballast MFG for Dimmer Compatibility
DLC Approved
No
Efficacy
127.27 LPW
Enclosed Fixture Use
Yes
Enclosure Rating
Enclosed Rated Lamp
FCC Compliant
Yes
Feature 1
Over 50 percent Energy Savings Vs. Standard T5 Systems
Feature 2
Compatible with T5 HO Ballasts
Feature 3
Integrated Thermal Fuse at Pins
Feature 4
All Glass Tube Construction
Feature 5
Damp location rated
Feature 6
Enclosed Fixture Rated
Flourescent Equivalent
24W
Incandescent Equivalent
50W
Indoor Outdoor
Indoor
Installation Notes
Not for use in vapor tight fixtures.
JA8 Compliant
No
Lamp Ballast Type A/B/C
Type A
Lamp End Type
Double Ended
Lamp Filament
LED
Lens Material
Glass
Location Rating
Damp
Long Description
SATCO| NUVO's S19948 2-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 11 watt, 5000K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins.
Material
Aluminum / Glass
Nominal Length
24
NSF Approved
Yes
Operating Frequency
50/60Hz
Operating Temp
-20C (-4F) to +45C (+113F)
Pack Type
Box
Power Factor
0.9
Quantity In Pack
1
RoHS Compliant
Yes
Romance Copy
SATCO| NUVO's LED Linear T5 Ballast Compatible Lamps come in 2-foot and 4-foot sizes, have over 50 percent energy savings compared to standard T5 systems, and provide enhanced safety thanks to the integrated thermal fuse. Our all-glass tube design not
SDS class
LED_Lamp
Short Description
11T5/LED/24-850/DR
Style
Utility
Technology
LED
Title 20 Compliant
No
Total Harmonic Distortion
20%
Wattage Selectable
No
Watts
11W
Finish Family
Additional options that would change other selections
Call for Price
BASE PRICE:
$
11
95
/
/ 1
($11.95 / 1)
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Availability:
- Manufacturer has 2886 items available.
